Print engines



SPX II – printing system for packaging systems

/fileadmin/user_upload/Produkttitelbilder/carl_valentin_spx_2_titelbild.jpg

High-performance print module designed for labelling in production lines

Using the SPX II series print module, labels, textiles and plastic materials can be printed on with a high resolution both in the dispensing mode and continuous operation mode. The assembly of the print module is possible both in a horizontal and vertical installation position and, due to its detachable and mobile control unit, the print module can be easily integrated into almost any packaging system.


The print modules designed for high-speed applications with a high throughput of labels are particularly suited for printing and application systems such as mail sorting systems, pallet labelling and labelling of electronic components.

  • Thermal or thermal transfer version
  • Right and left version
  • Detachable, mobile control unit
  • Inputs/Outputs
  • USB, RS 232, Centronics and Ethernet port
  • Slot for CF card

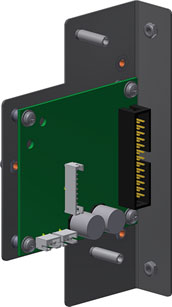

applicator
thermal printhead
touch panel
wlan
configtool
Ermöglicht Konfigurationen mit professionellem Tool "configTool"
labelstar
nicelabel

Videos

Technical data

Printing
Print resolution

203 dpi

Printing
Print speed

max 300 mm/s

Printing
Print width

104 mm

Printing
Passage width

116 mm

Printing
Label width

min 25 mm

Printing
Label height

max 6000 mm

Printing
Label height

min 15 mm

Printing
Printhead

Flat Type for thermal direct

Labels
Adhesive labels, continuous labels

paper, cardboard, textile, synthetics

Labels
Material weight

max 220 g/m² (other weight on request)

Labels
Roll diameter

max 350 mm (option)

Labels
Core diameter

min 40 mm

Labels
Winding

outside or inside

Labels
Label sensor

transmission


option: ultrasonic photocell

Transfer ribbon
Ink

outside or inside

Transfer ribbon
Roll diameter

max 90 mm

Transfer ribbon
Core diameter

25.4 mm / 1"

Transfer ribbon
Length

max 600 m

Transfer ribbon
Width

max 110 mm

Dimensions
Width x height x depth

245 x 300 x 400 mm

Dimensions
Weight

12 kg

Electronics
Processor

High Speed 32 Bit

Electronics
RAM

16 MB

Electronics
Slot

for Compact Flash Card type I

Electronics
Battery cache

for real-time clock (data storage when shutdown)

Electronics
Warning signal

acoustic signal when error

Interfaces
Serial

RS-232C (up to 115200 baud)

Interfaces
Parallel

SPP

Interfaces
USB

2.0 High Speed Slave

Interfaces
Ethernet

10/100 Base T, LPD, RawIP-Printing, DHCP, HTTP, FTP

Interfaces
2 x USB Master

connection for external USB keyboard and memory stick

Interfaces
WLAN

Module 802.11 b/g/n WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, EAP (option)

Operation data
Power supply

110 … 230 V AC / 50-60 Hz

Operation data
Power consumption

275 VA

Operation data
Nominal current

2.5 A

Operation data
Fuse rating

2x T5A 250 V

Operation data
Operating temperature

5 … 40 °C

Operation data
Relative humidity

max 80 % (non-condensing)

Operation data
Average sound power level

66.4 dB(A) - measuring distance 1 m

Operation panel
Keys

test print, function menu, quantity, CF card, label feed, enter, 4 x cursor

Operation panel
LCD display

graphic display 132 x 64 pixel

Settings
Default Settings

date, time, shift times


10 languages settings (other languages on request)


device parameters, interfaces, password protection

Monitoring
Stop printing if

end of ribbon, end of labels, printhead open

Monitoring
Status report

extensive status print with information about settings, e.g. print length counter, runtime counter, photocell, interface prameters, network parameters


printout of all internal fonts and all supported bar codes

Fonts
Font types

6 bitmap fonts


8 vector fonts/TrueType fonts


6 proportional fonts


other fonts on request

Fonts
Character sets

Windows 1250 up to1257, 437, 850, 852, 857, UTF-8


all West and East European, Latin, Cyrillic, Greek and Arabic (option) characters are supported


other character sets on request

Fonts
Bitmap fonts

size in width and height 0.8 … 5.6


zoom 2 … 9


orientation 0°, 90°, 180°, 270°

Fonts
Vector fonts/<br/>TrueType fonts

size in width and height 1 … 99 mm


variable zoom


orientation 0°, 90°, 180°, 270°

Fonts
Font attributes

depending on character font


bold, italic, inverse, vertical

Fonts
Font width

variable

Bar codes
1D bar codes

CODABAR, Code 128, Code 2/5 interleaved, Code 39, Code 39 extended, Code 93, EAN 13, EAN 8, EAN ADD ON, GS1-128, Identcode, ITF 14, Leitcode, Pharmacode, PZN Code, UPC-A, UPC-E

Bar codes
2D bar codes

Aztec Code, CODABLOCK F, DataMatrix, GS1 DataMatrix, MAXICODE, PDF 417, QR Code

Bar codes
Composite bar codes

GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated

Bar codes

variable in height, module width and ratio


orientation 0°, 90°, 180°, 270°


optionally with check digit and human readable line

Software
Configuration
Software
Process control
Software
Label software
Software
Windows driver
Printing
Print resolution

203 dpi

Printing
Print speed

max 300 mm/s

Printing
Print width

104 mm

Printing
Passage width

116 mm

Printing
Label width

min 25 mm

Printing
Label height

max 6000 mm

Printing
Label height

min 15 mm

Printing
Printhead

Flat Type for thermal transfer

Labels
Adhesive labels, continuous labels

paper, cardboard, textile, synthetics

Labels
Material weight

max 220 g/m² (other weight on request)

Labels
Roll diameter

max 350 mm (option)

Labels
Core diameter

min 40 mm

Labels
Winding

outside or inside

Labels
Label sensor

transmission


option: ultrasonic photocell

Transfer ribbon
Ink

outside or inside

Transfer ribbon
Roll diameter

max 90 mm

Transfer ribbon
Core diameter

25.4 mm / 1"

Transfer ribbon
Length

max 600 m

Transfer ribbon
Width

max 110 mm

Dimensions
Width x height x depth

245 x 300 x 400 mm

Dimensions
Weight

12 kg

Electronics
Processor

High Speed 32 Bit

Electronics
RAM

16 MB

Electronics
Slot

for Compact Flash Card type I

Electronics
Battery cache

for real-time clock (data storage when shutdown)

Electronics
Warning signal

acoustic signal when error

Interfaces
Serial

RS-232C (up to 115200 baud)

Interfaces
Parallel

SPP

Interfaces
USB

2.0 High Speed Slave

Interfaces
Ethernet

10/100 Base T, LPD, RawIP-Printing, DHCP, HTTP, FTP

Interfaces
2 x USB Master

connection for external USB keyboard and memory stick

Interfaces
WLAN

Module 802.11 b/g/n WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, EAP (option)

Operation data
Power supply

110 … 230 V AC / 50-60 Hz

Operation data
Power consumption

275 VA

Operation data
Nominal current

2.5 A

Operation data
Fuse rating

2x T5A 250 V

Operation data
Operating temperature

5 … 40 °C

Operation data
Relative humidity

max 80 % (non-condensing)

Operation data
Average sound power level

62.3 dB(A) - measuring distance 1 m

Operation panel
Keys

test print, function menu, quantity, CF card, label feed, enter, 4 x cursor

Operation panel
LCD display

graphic display 132 x 64 pixel

Settings
Default Settings

date, time, shift times


10 languages settings (other languages on request)


device parameters, interfaces, password protection

Monitoring
Stop printing if

end of ribbon, end of labels, printhead open

Monitoring
Status report

extensive status print with information about settings, e.g. print length counter, runtime counter, photocell, interface parameters, network parameters


printout of all internal fonts and all supported bar codes

Fonts
Font types

6 bitmap fonts


8 vector fonts/TrueType fonts


6 proportional fonts


other fonts on request

Fonts
Character sets

Windows 1250 up to1257, 437, 850, 852, 857, UTF-8


all West and East European, Latin, Cyrillic, Greek and Arabic (option) characters are supported


other character sets on request

Fonts
Bitmap fonts

size in width and height 0.8 … 5.6


zoom 2 … 9


orientation 0°, 90°, 180°, 270°

Fonts
Vector fonts/<br/>TrueType fonts

size in width and height 1 … 99 mm


variable zoom


orientation 0°, 90°, 180°, 270°

Fonts
Font attributes

depending on character font


bold, italic, inverse, vertical

Fonts
Font width

variable

Bar codes
1D bar codes

CODABAR, Code 128, Code 2/5 interleaved, Code 39, Code 39 extended, Code 93, EAN 13, EAN 8, EAN ADD ON, GS1-128, Identcode, ITF 14, Leitcode, Pharmacode, PZN Code, UPC-A, UPC-E

Bar codes
2D bar codes

Aztec Code, CODABLOCK F, DataMatrix, GS1 DataMatrix, MAXICODE, PDF 417, QR Code

Bar codes
Composite bar codes

GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated

Bar codes

variable in height, module width and ratio


orientation 0°, 90°, 180°, 270°


optionally with check digit and human readable line

Software
Configuration
Software
Process control
Software
Label software
Software
Windows driver
Printing
Print resolution

300 dpi

Printing
Print speed

max 300 mm/s

Printing
Print width

105.7 mm

Printing
Passage width

116 mm

Printing
Label weight

min 25 mm

Printing
Label height

max 3000 mm

Printing
Label height

min 15 mm

Printing
Printhead

Flat Type for thermal transfer

Labels
Adhesive labels, continuous labels

paper, cardboard, textile, synthetics

Labels
Material weight

max 220 g/m² (other weight on request)

Labels
Roll diameter

max 350 mm (option)

Labels
Core diameter

min 40 mm

Labels
Winding

outside or inside

Labels
Label sensor

transmission


option: ultrasonic photocell

Transfer ribbon
Ink

outside or inside

Transfer ribbon
Roll diameter

max 90 mm

Transfer ribbon
Core diameter

25.4 mm / 1"

Transfer ribbon
Length

max 600 m

Transfer ribbon
Width

max 110 mm

Dimensions
Width x height x depth

245 x 300 x 400 mm

Dimensions
Weight

12 kg

Electronics
Processor

High Speed 32 Bit

Electronics
RAM

16 MB

Electronics
Slot

for Compact Flash Card type I

Electronics
Battery cache

for real-time clock (data storage when shutdown)

Electronics
Warning signal

acoustic signal when error

Interfaces
Serial

RS-232C (up to 115200 baud)

Interfaces
Parallel

SPP

Interfaces
USB

2.0 High Speed Slave

Interfaces
Ethernet

10/100 Base T, LPD, RawIP-Printing, DHCP, HTTP, FTP

Interfaces
2 x USB Master

connection for external USB keyboard and memory stick

Interfaces
WLAN

Module 802.11 b/g/n WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, EAP (option)

Operation data
Power supply

110 … 230 V AC / 50-60 Hz

Operation data
Power consumption

275 VA

Operation data
Nominal current

2.5 A

Operation data
Fuse rating

2x T5A 250 V

Operation data
Operating temperature

5 … 40 °C

Operation data
Relative humidity

max 80 % (non-condensing)

Operation data
Average sound power level

63.7 dB(A) - measuring distance 1 m

Operation panel
Keys

test print, function menu, quantity, CF card, label feed, enter, 4 x cursor

Operation panel
LCD display

graphic display 132 x 64 pixel

Settings
Default Settings

date, time, shift times


10 languages settings (other languages on request)


device parameters, interfaces, password protection

Monitoring
Stop printing if

end of ribbon, end of labels, printhead open

Monitoring
Status report

extensive status print with information about settings, e.g. print length counter, runtime counter, photocell, interface parameters, network parameters


printout of all internal fonts and all supported bar codes

Fonts
Font types

6 bitmap fonts


8 vector fonts/TrueType fonts


6 proportional fonts


other fonts on request

Fonts
Character sets

Windows 1250 up to 1257, 437, 850, 852, 857, UTF-8


all West and East European, Latin, Cyrillic, Greek and Arabic (option) characters are supported


other character sets on request

Fonts
Bitmap fonts

size in width and height 0.8 … 5.6


zoom 2 … 9


orientation 0°, 90°, 180°, 270°

Fonts
Vector fonts/<br/>TrueType fonts

size in width and height 1…99 mm


variable zoom


orientation 0°, 90°, 180°, 270°

Fonts
Font attributes

depending on character font


bold, italic, inverse, vertical

Fonts
Font width

variable

Bar codes
1D bar codes

CODABAR, Code 128, Code 2/5 interleaved, Code 39, Code 39 extended, Code 93, EAN 13, EAN 8, EAN ADD ON, GS1-128, Identcode, ITF 14, Leitcode, Pharmacode, PZN Code, UPC-A, UPC-E

Bar codes
2D bar codes

Aztec Code, CODABLOCK F, DataMatrix, GS1 DataMatrix, MAXICODE, PDF 417, QR Code

Bar codes
Composite bar codes

GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated

Bar codes

variable in height, module width and ratio


orientation 0°, 90°, 180°, 270°


optionally with check digit and human readable line

Software
Configuration
Software
Process control
Software
Label software
Software
Windows driver
Printing
Print resolution

600 dpi

Printing
Print speed

max 100 mm/s

Printing
Print width

105.7 mm

Printing
Passage width

116 mm

Printing
Label width

min 25 mm

Printing
Label height

max 750 mm

Printing
Label height

min 15 mm

Printing
Printhead

Flat Type for thermal transfer

Labels
Adhesive labels, continuous labels

paper, cardboard, textile, synthetics

Labels
Material weight

max 220 g/m² (other weight on request)

Labels
Roll diameter

max 350 mm (option)

Labels
Core diameter

min 40 mm

Labels
Winding

outside or inside

Labels
Label sensor

transmission


option: ultrasonic photocell

Transfer ribbon
Ink

outside or inside

Transfer ribbon
Roll diameter

max 90 mm

Transfer ribbon
Core diameter

25.4 mm / 1"

Transfer ribbon
Length

max 600 m

Transfer ribbon
Width

max 110 mm

Dimensions
Width x height x depth

245 x 300 x 400 mm

Dimensions
Weight

12 kg

Electronics
Processor

High Speed 32 Bit

Electronics
RAM

16 MB

Electronics
Slot

for Compact Flash Card type I

Electronics
Battery cache

for real-time clock (data storage when shutdown)

Electronics
Warning signal

acoustic signal when error

Interfaces
Serial

RS-232C (up to 115200 baud)

Interfaces
Parallel

SPP

Interfaces
USB

2.0 High Speed Slave

Interfaces
Ethernet

10/100 Base T, LPD, RawIP-Printing, DHCP, HTTP, FTP

Interfaces
2 x USB Master

connection for external USB keyboard and memory stick

Interfaces
WLAN

Module 802.11 b/g/n WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, EAP (option)

Operation data
Power supply

110 … 230 V AC / 50-60 Hz

Operation data
Power consumption

275 VA

Operation data
Nominal current

2.5 A

Operation data
Fuse rating

2x T5A 250 V

Operation data
Operating temperature

5 … 40 °C

Operation data
Relative humidity

max 80 % (non-condensing)

Operation data
Average sound power level (measuring distance 1 m)

68.4 dB(A) - measuring distance 1 m

Operation panel
Keys

test print, function menu, quantity, CF card, label feed, enter, 4 x cursor

Operation panel
LCD display

graphic display 132 x 64 pixel

Settings
Default Settings

date, time, shift times


10 languages settings (other languages on request)


device parameters, interfaces, password protection

Monitoring
Stop printing if

end of ribbon, end of labels, printhead open

Monitoring
Status report

extensive status print with information about settings, e.g. print length counter, runtime counter, photocell, interface parameters, network parameters


printout of all internal fonts and all supported bar codes

Fonts
Font types

6 bitmap fonts


8 vector fonts/TrueType fonts


6 proportional fonts


other fonts on request

Fonts
Character sets

Windows 1250 bis1257, 437, 850, 852, 857, UTF-8


all West and East European, Latin, Cyrillic, Greek and Arabic (option) characters are supported


other character sets on request

Fonts
Bitmap fonts

size in width and height 0.8 … 5.6


zoom 2 … 9


orientation 0°, 90°, 180°, 270°

Fonts
Vector fonts/<br/>TrueType fonts

size in width and height 1 … 99 mm


variable zoom


orientation 0°, 90°, 180°, 270°

Fonts
Font attributes

depending on character font


bold, italic, inverse, vertical

Fonts
Font width

variable

Bar codes
1D bar codes

CODABAR, Code 128, Code 2/5 interleaved, Code 39, Code 39 extended, Code 93, EAN 13, EAN 8, EAN ADD ON, GS1-128, Identcode, ITF 14, Leitcode, Pharmacode, PZN Code, UPC-A, UPC-E

Bar codes
2D bar codes

Aztec Code, CODABLOCK F, DataMatrix, GS1 DataMatrix, MAXICODE,


PDF 417, QR Code

Bar codes
Composite bar codes

GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated

Bar codes

variable in height, module width and ratio


orientation 0°, 90°, 180°, 270°


optionally with check digit and human readable line

Software
Configuration
Software
Process control
Software
Label software
Software
Windows driver
Printing
Print resolution

300 dpi

Printing
Print speed

max 300 mm/s

Printing
Print width

108.4 mm

Printing
Passage width

116 mm

Printing
Label width

min 25 mm

Printing
Label height

max 3000 mm

Printing
Label height

min 15 mm

Printing
Printhead

Flat Type for thermal direct

Labels
Adhesive labels, continuous labels

paper, cardboard, textile, synthetics

Labels
Material weight

max 220 g/m² (other weight on request)

Labels
Roll diameter

max 350 mm (option)

Labels
Core diameter

min 40 mm

Labels
Winding

outside or inside

Labels
Label sensor

transmission


option: ultrasonic photocell

Transfer ribbon
Ink

outside or inside

Transfer ribbon
Roll diameter

max 90 mm

Transfer ribbon
Core diamter

25.4 mm / 1"

Transfer ribbon
Length

max 600 m

Transfer ribbon
Width

max 110 mm

Dimensions
Width x height x depth

245 x 300 x 400 mm

Dimensions
Weight

12 kg

Electronics
Processor

High Speed 32 Bit

Electronics
RAM

16 MB

Electronics
Slot

for Compact Flash Card type I

Electronics
Battery cache

for real-time clock (data storage when shutdown)

Electronics
Warning signal

acoustic signal when error

Interfaces
Serial

RS-232C (up to 115200 baud)

Interfaces
Parallel

SPP

Interfaces
USB

2.0 High Speed Slave

Interfaces
Ethernet

10/100 Base T, LPD, RawIP-Printing, DHCP, HTTP, FTP

Interfaces
2 x USB Master

connection for external USB keyboard and memory stick

Interfaces
WLAN

Module 802.11 b/g/n WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, EAP (Option)

Operation data
Power supply

110 … 230 V AC / 50-60 Hz

Operation data
Power consumption

275 VA

Operation data
Nominal current

2.5 A

Operation data
Fuse rating

2x T5A 250 V

Operation data
Operating temperature

5 … 40 °C

Operation data
Relative humidity

max 80 % (non-condensing)

Operation data
average sound power level

67.8 dB(A) - measuring distance 1 m

Operation panel
Keys

test print, function menu, quantity, CF card, label feed, enter, 4 x cursor

Operation panel
LCD display

graphic display 132 x 64 pixel

Settings
Default Settings

date, time, shift times


10 languages settings (other languages on request)


device parameters, interfaces, password protection

Monitoring
Stop printing if

end of ribbon, end of labels, printhead open

Monitoring
Status report

extensive status print with information about settings, e.g. print length counter, runtime counter, photocell, interface parameters, network parameters


printout of all internal fonts and all supported bar codes

Fonts
Font types

6 bitmap fonts


8 vector fonts/TrueType fonts


6 proportional fonts


other fonts on request

Fonts
Character sets

Windows 1250 up to 1257, 437, 850, 852, 857, UTF-8


all West and East European, Latin, Cyrillic, Greek and Arabic (option) characters are supported


other character sets on request

Fonts
Bitmap fonts

size in width and height 0.8 … 5.6


zoom 2 … 9


orientation 0°, 90°, 180°, 270°

Fonts
Vector fonts/<br/>TrueType fonts

size in width and height 1 … 99 mm


variable zoom


orientation 0°, 90°, 180°, 270°

Fonts
Font attributes

depending on character font


bold, italic, inverse, vertical

Fonts
Font width

variable

Bar codes
1D bar codes

CODABAR, Code 128, Code 2/5 interleaved, Code 39, Code 39 extended, Code 93, EAN 13, EAN 8, EAN ADD ON, GS1-128, Identcode, ITF 14, Leitcode, Pharmacode, PZN Code, UPC-A, UPC-E

Bar codes
2D bar codes

Aztec Code, CODABLOCK F, DataMatrix, GS1 DataMatrix, MAXICODE,


PDF 417, QR Code

Bar codes
Composite bar codes

GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated

Bar codes

variable in height, module width and ratio


orientation 0°, 90°, 180°, 270°


optionally with check digit and human readable line

Software
Configuration
Software
Process control
Software
Label software
Software
Windows driver
Printing
Print resolution

300 dpi

Printing
Print speed

max 200 mm/s

Printing
Print width

162.2 mm

Printing
Passage width

176 mm

Printing
Label width

min 50 mm

Printing
Label height

max 2000 mm

Printing
Label height

min 15 mm

Printing
Printhead

Flat Type for thermal transfer and thermal direct

Labels
Adhesive labels, continuous labels

paper, cardboard, textile, synthetics

Labels
Material weight

max 220 g/m² (other weight on request)

Labels
Roll diameter

max 350 mm (option)

Labels
Core diameter

min 40 mm

Labels
Winding

outside or inside

Labels
Label sensor

transmission


option: ultrasonic photocell

Transfer ribbon
Ink

outside or inside

Transfer ribbon
Roll diameter

max 90 mm

Transfer ribbon
Core diameter

25.4 mm / 1"

Transfer ribbon
Length

max 600 m

Transfer ribbon
Width

max 170 mm

Dimensions
Width x height x depth

245 x 300 x 460 mm

Dimensions
Weight

14 kg

Electronics
Processor

High Speed 32 Bit

Electronics
RAM

16 MB

Electronics
Slot

for Compact Flash Card type I

Electronics
Battery cache

for real-time click (data storage when shutdown)

Electronics
Warning signal

acoustic signal when error

Interfaces
Serial

RS-232C (up to 115200 baud)

Interfaces
Parallel

SPP

Interfaces
USB

2.0 High Speed Slave

Interfaces
Ethernet

10/100 Base T, LPD, RawIP-Printing, DHCP, HTTP, FTP

Interfaces
2 x USB Master

connection for external USB keyboard and memory stick

Interfaces
WLAN

Module 802.11 b/g/n WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, EAP (option)

Operation data
Power supply

110 … 230 V AC / 50-60 Hz

Operation data
Power consumption

275 VA

Operation data
Nominal current

2.5 A

Operation data
Fuse rating

2x T5A 250 V

Operation data
Operating temperature

5 … 40 °C

Operation data
Relative humidity

max 80 % (non-condensing)

Operation data
Average sound power level

65.1 dB(A) - measuring distance 1 m

Operation panel
Keys

test print, function menu, quantity, CF card, label feed, enter , 4 x cursor

Operation panel
LCD display

graphic display 132 x 64 pixel

Settings
Default Settings

date, time, shift times


10 languages settings (other languages on request)


device parameters, interfaces, password protection

Monitoring
Stop printing if

end of ribbon, end of labels, printhead open

Monitoring
Status report

extensive status print with information about settings, e.g. print length counter, runtime counter, photocell, interface parameters, network parameters


printout of all internal fonts and all supported bar codes

Fonts
Font types

6 bitmap fonts


8 vector fonts/TrueType fonts


6 proportional fonts


other fonts on request

Fonts
Character sets

Windows 1250 up to 1257, 437, 850, 852, 857, UTF-8


all West and East European, Latin, Cyrillic, Greek and Arabic (option) characters are supported


other character sets on request

Fonts
Bitmap fonts

size in width and height 0.8 … 5.6


zoom 2 … 9


orientation 0°, 90°, 180°, 270°

Fonts
Vector fonts/<br/>TrueType fonts

size in width and height 1 … 99 mm


variable zoom


orientation 0°, 90°, 180°, 270°

Fonts
Font attributes

depending on character font


bold, italic, inverse, vertical

Fonts
Font width

variable

Bar codes
1D bar codes

CODABAR, Code 128, Code 2/5 interleaved, Code 39,


Code 39 extended, Code 93, EAN 13, EAN 8, EAN ADD ON,


GS1-128, Identcode, ITF 14, Leitcode, Pharmacode, PZN Code,


UPC-A, UPC-E

Bar codes
2D bar codes

Aztec Code, CODABLOCK F, DataMatrix, GS1 DataMatrix, MAXICODE, PDF 417, QR Code

Bar codes
Composite bar codes

GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated

Bar codes

variable in height, module width and ratio


orientation 0°, 90°, 180°, 270°


optionally with check digit and human readable line

Software
Configuration
Software
Process control
Software
Label software
Software
Windows driver
Subject to alterations

Program Variants

System requirements

Accessories

1874

Additional toroidal 75 mm cpl for unwinder

Additional toroidal
7215060

For the use of 75 mm cardboard core instead of 40 mm (standard).

1886

Applicator prearrangement

Applicator prearrangements
9083925A

Interface for connecting any applicator. The necessary control signals are provided.

1887

Applicator prearrangement (CV version)

Applicator prearrangements
9083926A

Interface for connecting a Valentin applicator. The necessary control signals are provided.

1867

Compact Flash Card 2GB

Compact Flash
3702014

2 GB Compact Flash Card

1862

Dispenser pillar, long for SPX II 10X

Dispenser units
4587501

Long dispensing edge, separate without accessories.

The dispenser unit is controlled by a manual switch, foot switch or an external control signal.

Without extra charge for new printer.

1863

Dispenser pillar, long for SPX II 162

Dispenser units
4587503

Long dispensing edge, separate without accessories.

The dispenser unit is controlled by a manual switch, foot switch or an external control signal.

Without extra charge for new printer.

1864

Dispenser pillar, long with holding-down clamp for SPX II 10X

Dispenser units
9087930

Long dispensing edge with holding-down clamp.

If labels are difficult to remove (e.g. plastic labels).

The dispenser unit is controlled by a manual switch, foot switch or an external control signal.

With extra charge for new printer.

1865

Dispenser pillar, short with holding-down clamp for SPX II 10X

Dispenser units
9087932

Short dispensing edge with holding-down clamp.

If labels are difficult to remove (e.g. plastic labels).

The dispenser unit is controlled by a manual switch, foot switch or an external control signal.

With extra charge for new printer.

1866

Dispenser pillar, short with holding-down clamp for SPX II 16X

Dispenser units
9087934

Short dispensing edge with holding-down clamp.

If labels are difficult to remove (e.g. plastic labels

The dispenser unit is controlled by a manual switch, foot switch or an external control signal.

With extra charge for new printer.

1859

Dispenser unit for SPX 10X, left version

Dispenser units
7186592

For retrofitting the printer for the operation in dispenser mode.

The dispenser unit is controlled by a manual switch, foot switch or an external control signal.

1858

Dispenser unit for SPX 10X, right version

Dispenser units
7186590

For retrofitting the printer for the operation in dispenser mode.

The dispenser unit is controlled by a manual switch, foot switch or an external control signal.

1861

Dispenser unit for SPX 162, left version

Dispenser units
7186597

For retrofitting the printer for the operation in dispenser mode.

The dispenser unit is controlled by a manual switch, foot switch or an external control signal.

1860

Dispenser unit for SPX 162, right version

Dispenser units
7186595

For retrofitting the printer for the operation in dispenser mode.

The dispenser unit is controlled by a manual switch, foot switch or an external control signal.

1888

Rotatable label guiding for SPX II 10X

Label guidings
9083930

For an easier label run.

1889

Rotatable label guiding for SPX II 16X

Label guidings
9083933

For an easier label run.

1881

External operating unit Extension cable kit 2.5 m

Operating unit
9083900A

Extension cable kit for freely positionable operating unit, for the easy integration in almost every packaging machine.

With extra charge for new printer.

1880

Label photocell transmission + reflexion from below

Photocells
9083987A

Label detection with transmission and reflexion from below (for black bars on the label).

With extra charge for new printer.

7267

Ultrasonic label photocell, left version

Photocells
9083992A

For transparent labels on transparent liner.

With extra charge for new printer (no retrofit possible).

9260

Ultrasonic label photocell, right version

Photocells
9083991A

For transparent labels on transparent liner.

With extra charge for new printer (no retrofit possible).

1897

Protective cover set for ports

Protective cover sets
9057994

For protecting the ports from dirt and dust in harsh industrial environments.

1868

Liner rewinder for SPX II 10X

Rewinder units
9087970

For rewinding the liner after printing and dispensing.

right version: outside winding

left version: inside winding

1870

Liner rewinder for SPX II 10X

Rewinder units
9087975

For rewinding the liner after printing and dispensing.

right version: inside winding

left version: outside winding

1869

Liner rewinder for SPX II 16X

Rewinder units
9087973

For rewinding the liner after printing and dispensing.

right version: outside winding

left version: inside winding

1871

Liner rewinder for SPX II 16X

Rewinder units
9087978

For rewinding the liner after printing and dispensing.

right version: inside winding

left version: outside winding

1884

Stainless steel case for SPX II 10X, left version

Stainless steel cases
9083913A

Made of hygienic stainless steel for use in food industry, beverage industry, chemical industry, pharmaceutical industry, medical technology etc.

With extra charge for new printer.

1882

Stainless steel case for SPX II 10X, right version

Stainless steel cases
9083910A

Made of hygienic stainless steel for use in food industry, beverage industry, chemical industry, pharmaceutical industry, medical technology etc.

With extra charge for new printer.

1885

Stainless steel case for SPX II 16X, left version

Stainless steel cases
9083914A

Made of hygienic stainless steel for use in food industry, beverage industry, chemical industry, pharmaceutical industry, medical technology etc.

With extra charge for new printer.

1883

Stainless steel case for SPX II 16X, right version

Stainless steel cases
9083911A

Made of hygienic stainless steel for use in food industry, beverage industry, chemical industry, pharmaceutical industry, medical technology etc.

With extra charge for new printer.

1891

Stepper motor Feed reinforced, left version

Stepper motors
9083941A

For the use of large label rolls to ensure the correct feed.

1890

Stepper motor Feed reinforced, right version

Stepper motors
9083940A

For the use of large label rolls to ensure the correct feed.

1872

Label unwinder cpl for SPX II 10X

Unwinder units
7288130

For unwinding large label rolls.

Max external diameter of label roll: 200 mm

Label winding: outside/inside

Core diameter: 40 mm (optional 75 mm)

1876

Label unwinder cpl for SPX II 10X

dancer arm, left version

Unwinder units
9287005

For unwinding large label rolls.

Max external diameter of label roll 350 mm

Label winding: outside/inside

Core diameter 76 mm

1875

Label unwinder cpl for SPX II 10X

dancer arm, right version

Unwinder units
9287001

For unwinding large label rolls.

Max external diameter of label roll: 350 mm

Label winding: outside/inside

Core diameter: 76 mm

1873

Label unwinder cpl for SPX II 16X

Unwinder units
7288230

For unwinding large label rolls.

Max external diameter of label roll 200 mm

Label winding: outside/inside

Core diameter: 40 mm (optional 75 mm)

1878

Label unwinder cpl for SPX II 16X

dancer arm, left version

Unwinder units
9287015

For unwinding large label rolls.

Max external diameter of label roll: 350 mm

Label winding: outside/inside

Core diameter: 76 mm

1877

Label unwinder cpl for SPX II 16X

dancer arm, right version

Unwinder units
9287010

For unwinding large label rolls.

Max external diameter of label roll 350 mm

Label winding: outside/inside

Core diameter: 76 mm

1879

WLAN

WLAN
9083980A

WLAN card 802.11b/g WEP/WPA PSK (TKIP)

(Warning! Cannot be retrofitted: It is to be indicated for new orders.)

CARL VALENTIN GMBH ·
Neckarstraße 78 - 86 u. 94 ·
78056 Villingen-Schwenningen

Tel. +49 7720 9712-0 ·
Distribution centre +49 7720 9712-20 ·
Fax +49 7720 9712-9901 ·
info@domain1.tld
